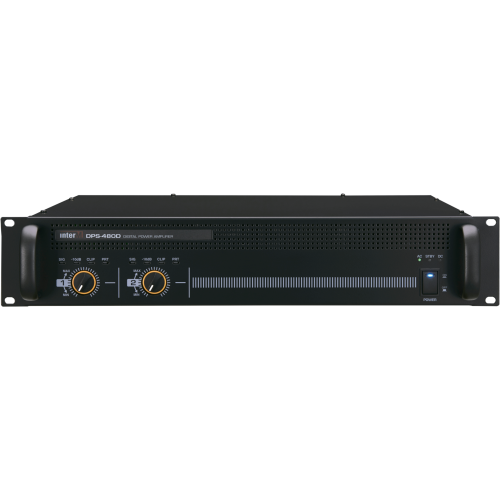

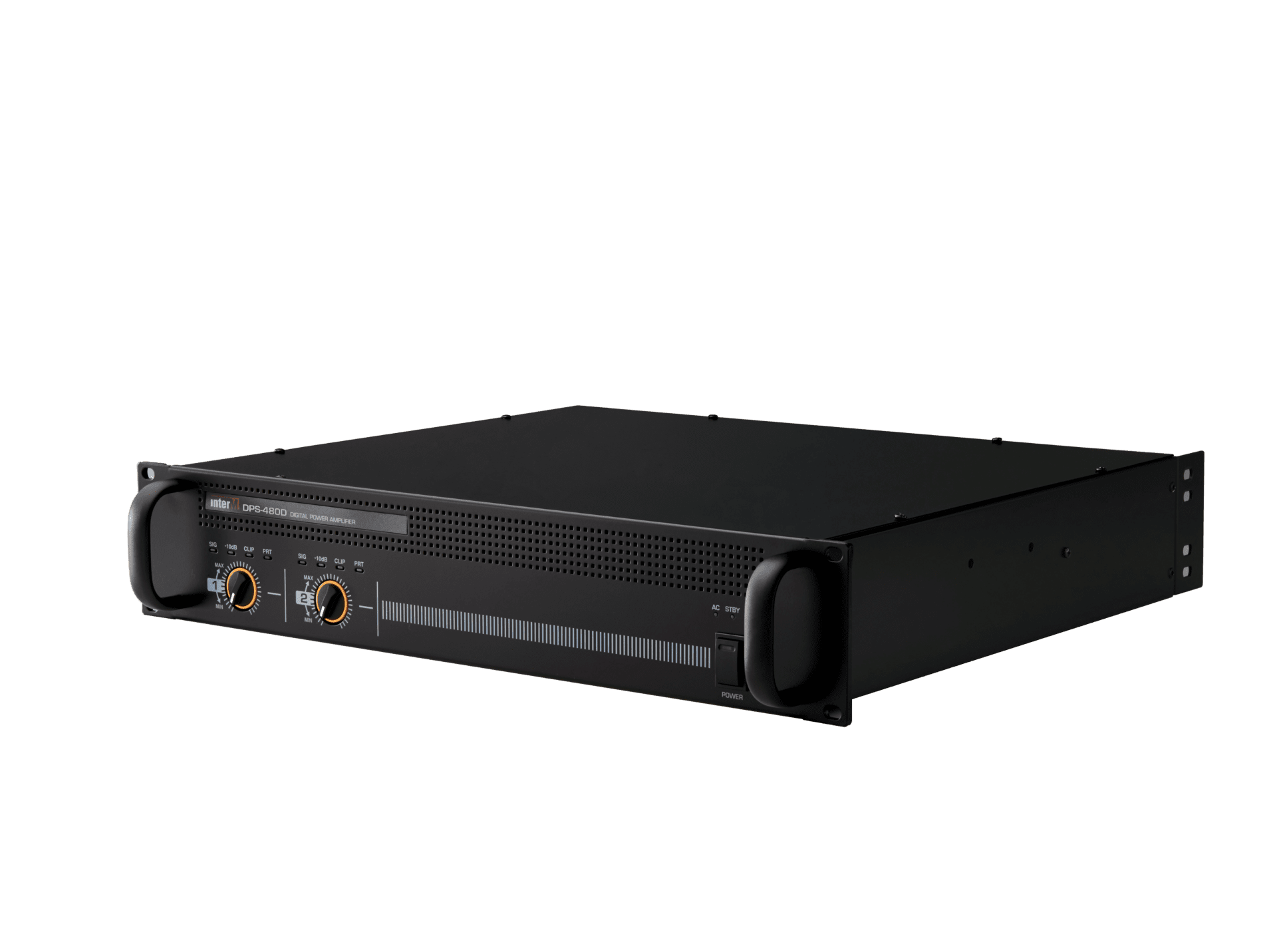

Class-D 2x 480W / 100V amplifier
Class-D 2 x 480W / 100V Amplifier

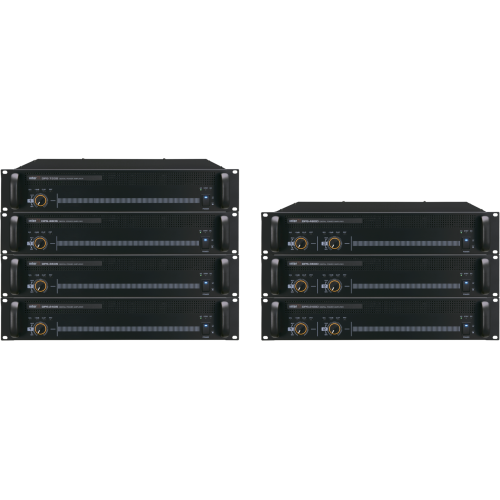

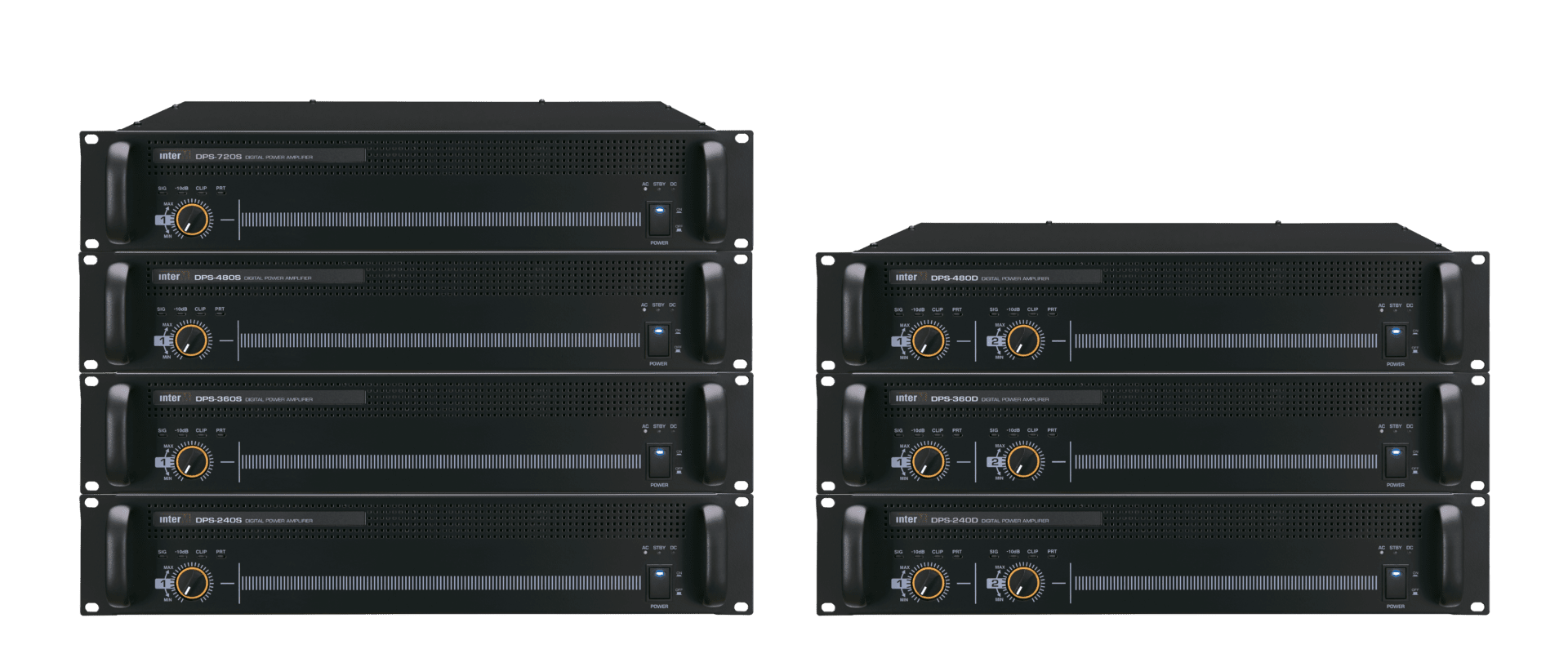

The DPS series offers a range of 2U Class-D numerical amplifiers with over 90% efficiency, reducing heat dissipation, noise and weight compared to traditional analogue amplifiers.
This range is divided into several models, from single to dual channel, from 240 to 720W.
These amplifiers have 2 audio inputs, including a priority input that can be used to interrupt the programme in progress, for example to transmit a priority message via a floating contact.

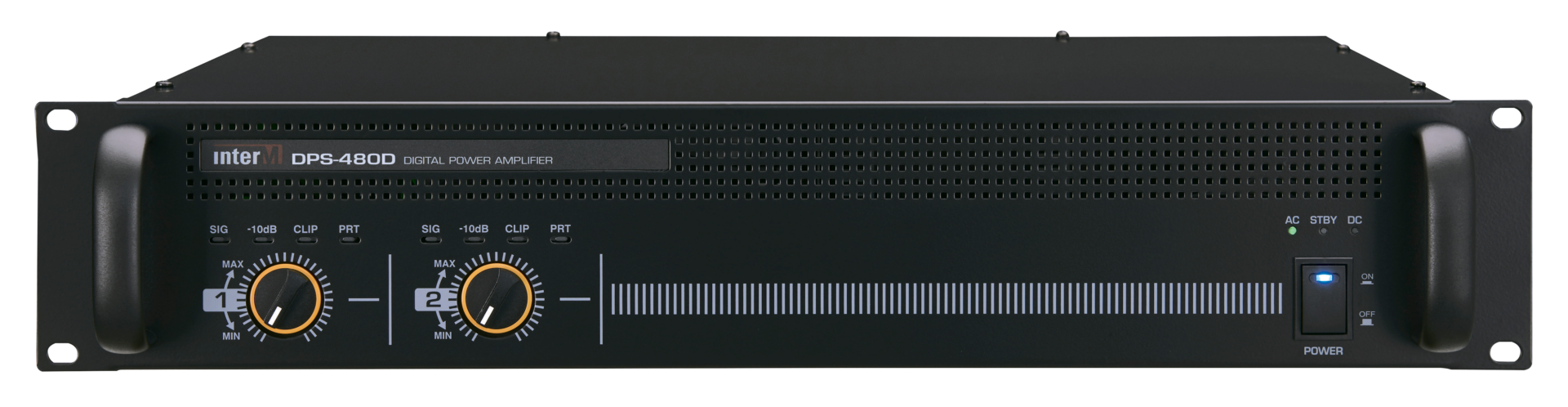

LEDs on the front panel allow instant checking of amplifier status.
24V DC terminal block for use with back-up battery.
| Dimension (LxHxP) | 482(W) × 88(H) × 424(D)mm |
|---|---|
| Frequency response | 60Hz~20kHz |
| Impedance | 70V/10.2Ω |
| Input sensibility | 1V/10kΩ |
| Operating temperature | -10°C~40°C |
| Output impedance | 100V/20.8Ω |
| Power | 480W x 2 |
| Power consumption | 250W |
| Signal / Noise | More than 100dB |
| T.H.D | Less than 0.5% |
| Weight | 8.23 kg |
